Ultrasound
Converters

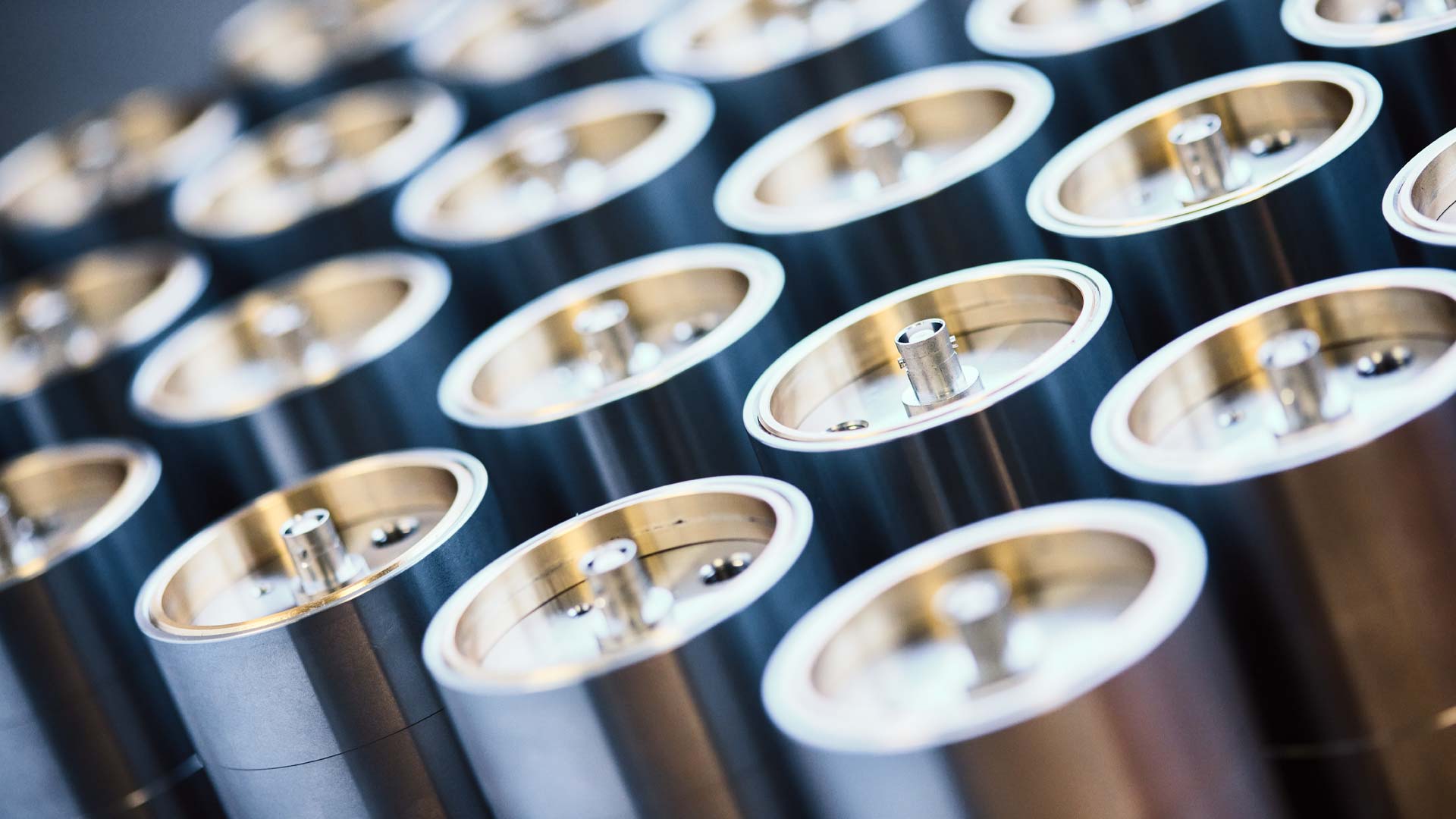

EUROSONIC applies the highest standards of quality and safety when developing and manufacturing ultrasonic converters. These high standards, which we always strive to maintain and develop further, are a key part of our success. And they result in numerous benefits, especially for our customers. For example: A special add-on on the converter enables the welding unit to be clamped directly to the converter without a booster.
Key Features
- Power range from 20 W to 6,000 W
- Frequency range 20, 30, 35, 40 and 60 kHz
- 98% efficiency
- Tough stainless-steel casing
- Anti-rotation, low-attenuation mounting
- Easy assembly without special tools
*optional
- Available with various degrees of protection up to IP 68*
- Also available for rotation applications*
- Featuring a compressed-air cooling connection*
- Approved according to ATEX directives for explosion-protected dust and gas areas
- Approved according to UL standards (an organization in Canada and the United States that certifies electrical engineering products)
- Featuring a retaining ring*
Versions
Converters
IP 68 in a stainless-steel casing
In this casing version, we can meet the highest standards of safety and leak tightness.
- Permanently connected cable
- Various classifications for explosion-protected areas
- Anti-rotation and low attenuation
Converters
Various versions
Converters with two, four and six disks in a wide range of variants. Also for mounting with a hook wrench. Customer-specific thread.
- Various casing designs
- Electrical connections for various degrees of protection
- Cooling via fan or compressed air
20-kHz-to-6-kW converter
In terms of electrical connection, the 20-kHz-to-6-kW converter has hexagonal wrench flats. Thanks to these wrench flats, the converters can be fastened to the boosters with the defined torques in a reproducible and operationally safe manner.
- Suitable for confined spaces, e.g. in the case of a sonotrode carpet or sonotrode table.
- Various versions for the electrical connection possible.
FAQ
The electronic oscillations produced by the generator are converted into mechanical oscillations by the ultrasonic converter. These are then conveyed via a sonotrode, or via an ultrasonic tool used in the application.
Yes, we also have an approval for dusty areas according to the ATEX directive for explosion-protected areas.
Many different factors determine the type of converter selected. Of course, the planned application is a very important factor. However, the converter's installation situation and the ambient conditions are also crucial. Is a certain degree of protection required or will the converter be used in an explosion-protected area? In addition to our converters, we are happy to offer you suitable retainers to optimally secure the welding unit and thus ensure precise working.
Contact our specialists for help selecting the right products for your application.
